Waivers Tab

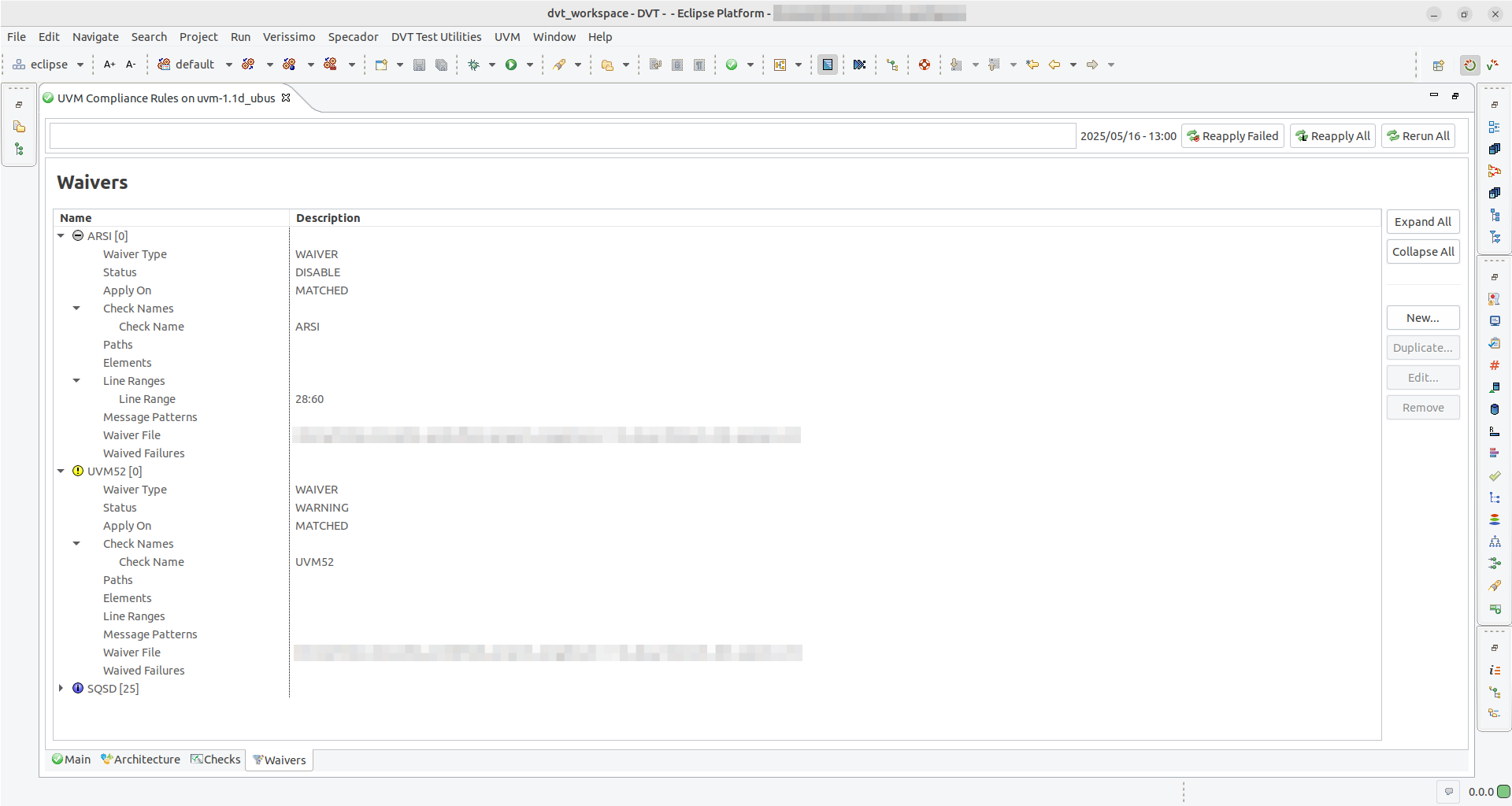

The waivers tab can be used to add, remove, edit and inspect waivers and pre-waivers.

There are three types of waivers:

  • Manually defined waivers

  • Manually defined pre-waivers

  • Inline waivers (collected from code)

Waivers are used to change the status of the failures or remove the failures that are matched. Pre-waivers are used to exclude files from linting, therefore reducing the total linting time.

../../_images/vlogdt-uvm-compliance-waivers-tab.png

Waivers Editor

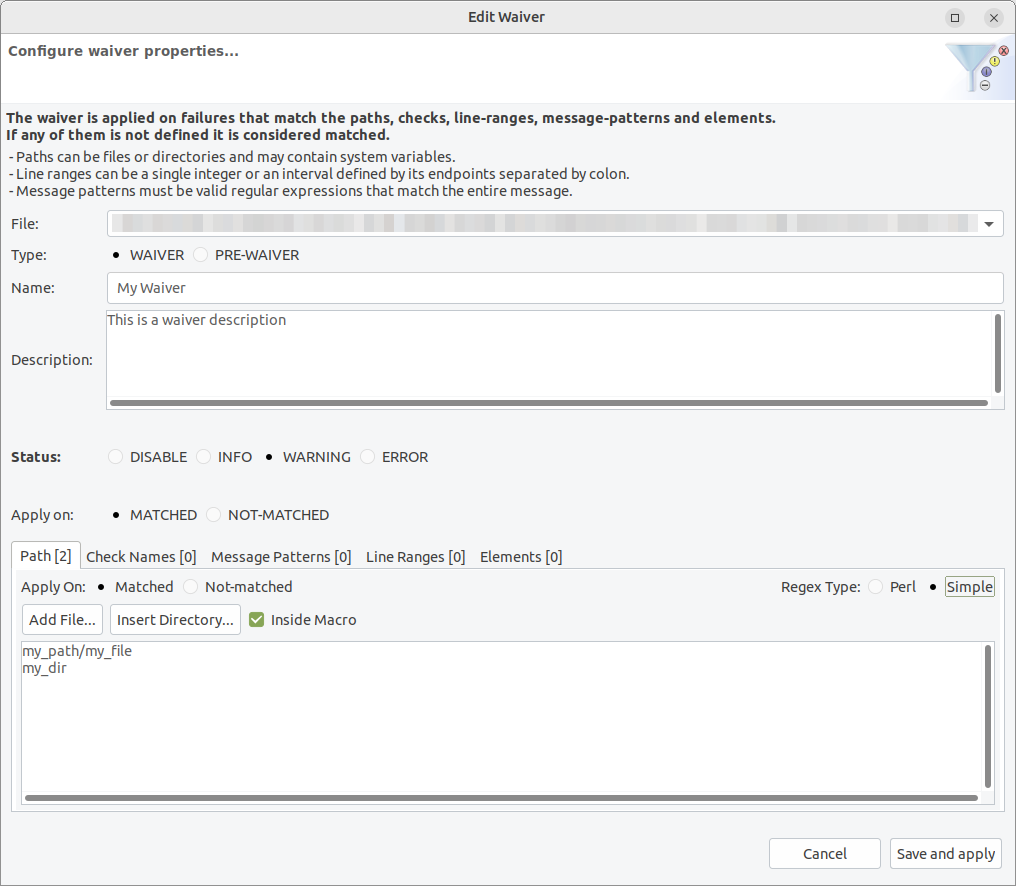

Manually defined waivers can be created using New… button from the Waivers tab. The Lint Waivers Editor dialog offers an easy way to configure a waiver. The parameters that can be configured are:

  • File: the file where the waiver will be saved (from the waivers include tree)

  • Name: an unique name for the waiver

  • Description: a short explanation for the waiver

  • Status: the status that will be applied to the matched failures

  • Apply on: the scope of the waiver (it applies on matched or non matched failures)

  • Paths: the file paths on which this waiver applies to

  • Check Names: the name of the checks this waiver applies to

  • Message Patterns: the regular expression this waiver must match (Perl-like or simple regular expression)

  • Line Ranges: the line, or line ranges (StartLine:EndLine) this waiver must match

  • Elements: the elements used to obtain a set of files that will be waived; files containing only such elements and all the files included in the scope of those elements will be waived

The status option can be set to:

  • DISABLED: failures are removed

  • ERROR: failures are reported as errors

  • WARNING: failures are reported as warnings

  • INFO: failures are reported as info

The waiver will match a failure if all defined parameters match the failure properties (the check that generated the failure, line, file, or message). If a parameter is empty (not defined) it will match any value.

../../_images/waiver-dialog-showcase.png

Pre-Waivers Editor

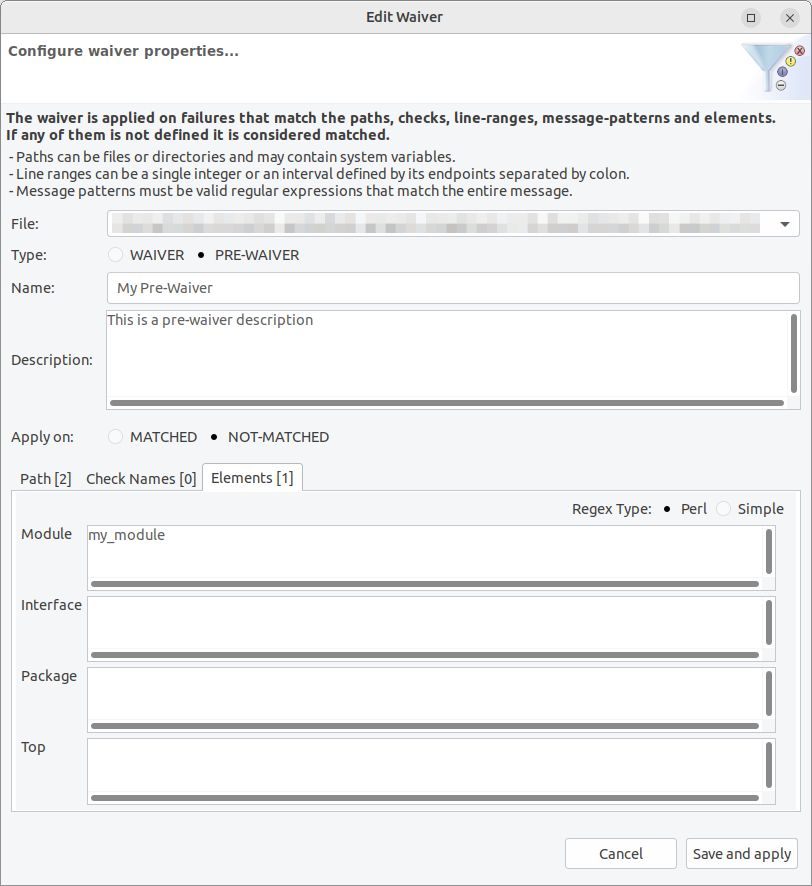

Manually defined pre-waivers can be created using New… button from the Waivers tab and setting the Waiver Type to PRE-WAIVER. The parameters that can be configured are:

  • File: the file where the pre-waiver will be saved (from the waivers include tree)

  • Name: an unique name for the pre-waiver

  • Description: a short explanation for the pre-waiver

  • Apply on: the scope of the pre-waiver (it applies on matched or non matched paths)

  • Paths: the paths on which this waiver applies to

  • Check Names: the name of the checks this pre-waiver applies to

  • Elements: the elements used to obtain a set of files that will be pre-waived; files containing only such elements and all the files included in the scope of those elements will be pre-waived

../../_images/pre-waiver-dialog-showcase.png

Inline Waivers Editor

Lint waivers can be extracted from user comments containing a specific pragma.

Inline waivers syntax:
 code line 1
 code line 2
 // @DVT_LINTER_WAIVER_START "#NAME#" "#DESCRIPTION#" #STATUS# #CHECKS#
 code line 4
 ...
 code line 7
 // @DVT_LINTER_WAIVER_END "#NAME#"
 code line 8
 code line 10 // @DVT_LINTER_WAIVER "#NAME#" "#DESCRIPTION#" #STATUS# #CHECKS#
 code line 11
 code line 12 /* @DVT_LINTER_WAIVER "#NAME#" "#DESCRIPTION#" #STATUS# #CHECKS# */ // inline comment
 code line 13 /* @DVT_LINTER_WAIVER "#NAME#" "#DESCRIPTION#" #STATUS# #CHECKS# */ /* @DVT_LINTER_WAIVER "#NAME#" "#DESCRIPTION#" #STATUS# #CHECKS# */ // inline comment

Parameters:

#NAME#

  • Must be an unique id of a waiver

  • It is optional; if not defined, a default name containing file and line is used

#DESCRIPTION#

  • Used in GUI as a description box for the waiver

  • It is optional; if not defined, a default description containing file and line is used

#STATUS#

  • Any value from the following set of values (mandatory)

    • error : hits matched by this waiver will be reported as errors

    • warning : hits matched by this waiver will be reported as warnings

    • info : hits matched by this waiver will be reported as infos

    • disable : hits matched by this waiver will not be stored

  • If two or more waivers cover the same piece of code they will apply in the order they were declared.

  • Inline waivers are applied before file waivers

#CHECKS#

  • Is a comma separated list of check names

Note

  • Inline waivers are applied only on failures in the same file where they were declared.

  • The failures in files included between begin and end of a waiver are not affected by the waiver.

  • The begin/end of multiline waivers must always be in the same file.

  • The multiline waivers can be interlaced by using names for start and end pragmas.

  • The inline waivers must be inserted before inline comments as block comments, otherwise they will not be identified.

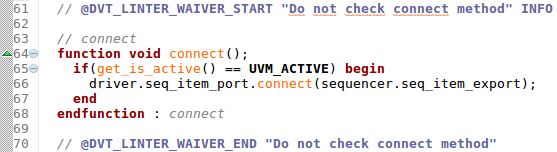

../../_images/vlogdt-uvm-compliance-code-waiver.png

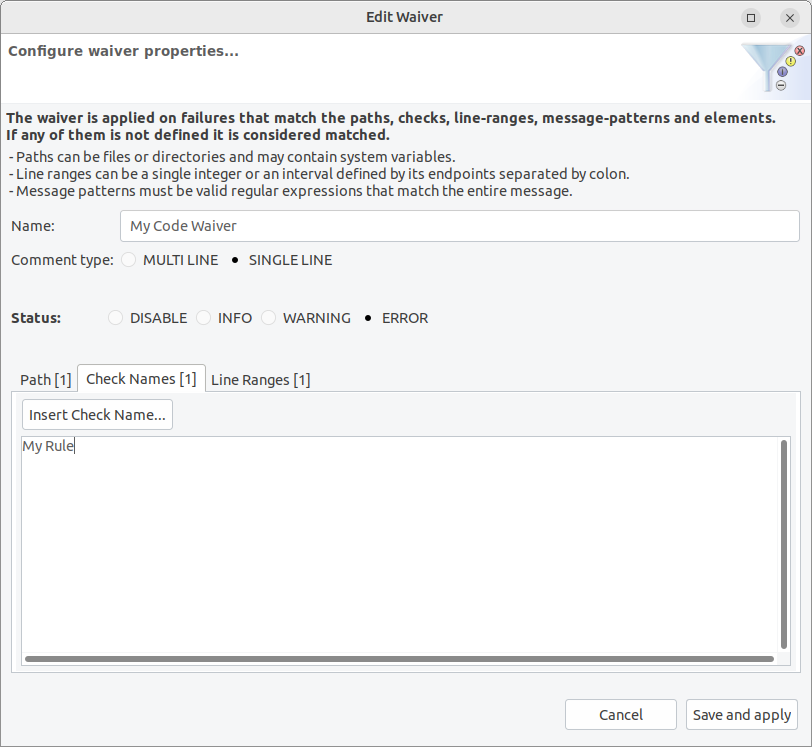

Manually defined inline waivers can be created selecting Add Code Waiver for Failure option when right-clicking on a failure in Checks Tab. The parameters that can be configured are:

  • Comment type: the type of comment that will be inserted in code

  • Name: an unique name for the waiver

  • Description: a short explanation for the waiver

  • Status: the status that will be applied to the matched failures

  • Check Names: the name of the checks this waiver applies to

    • Insert Check Names button: opens a dialog with checks available in current linting session; those selected will be added to the waiver

  • Line Ranges: the line, or line range (StartLine:EndLine) this waiver must match

    • Waive Entire File button: replaces the current line or line range with a line range covering the entire file

../../_images/code-waiver-dialog-showcase.png
